Panoramic Rudder Angle Indicator (MD72RDI)

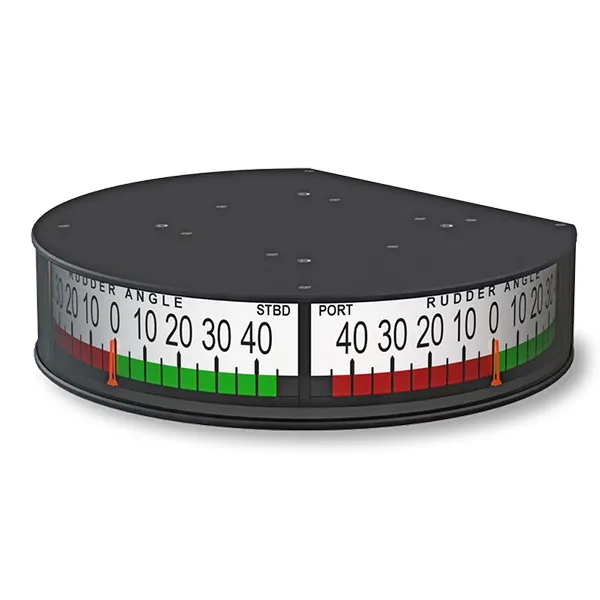

Panoramic Rudder Angle Indicator (MD72RDI) is a 3-face, 250mm diameter, NMEA-based Panoramic Rudder Angle Indicator. It provides a clear display of rudder angle, which is easy to read from any position on a bridge.  Each window has an analogue display graduated in 5° increments from 45° Port to 45° Starboard. Housed in a robust, compact aluminium enclosure and fitted with a rotary encoder dimmer control for background and pointer illumination, it is ideal for any vessel.

The MD72RDI offers a rudder angle indicator solution for locations where the available space is limited and may be either bulkhead or deckhead mounted with the included VESA 100 mount. It is finished in jet black to complement other marine navigation equipment.

The MD72RDI from MARINE DATA: Flexible in application, easy to install and simple to maintain.

Special Features

• Automatic warning of lost valid rudder sensor angle data and automatic detection of previously lost heading data without a reset being required
• Includes VESA 100 bracket for deck head mounting
• Local and Remote dimming control

Applications

• The MD72RDI is designed to display RSA Rudder Angle Sensor Data transmitted from marine equipment compatible with the NMEA 0183 data protocol (for example, the Marine Data MD61 Rudder Angle Sensor Transmitter)
• Two indicators may be configured for a vessel equipped with dual rudders in a Rudder Angle System
• Related Products & Systems
• Rudder Angle Transmitter MD61
• Data Distribution Unit MD94DDU

Specifications:

• Weight: 2.0 kg
• Dimensions: H 64 mm (excluding VESA mounting bracket); W 270 mm; D 333 mm (including cable)
• Mounting: Optional VESA 100 bulkhead mounting
• Connections: 1x data cable to 15-pin D-sub plug; M4 earth stud
• Construction: Aluminium alloy enclosure
• Finish: RAL9005 Jet Black, fine texture
• IP Rating: IP54
• Operating Temp: -15°C to +55°C
• Storage Temp: -25°C to +70°C
• RoHS: Compliant
• Magnetic: Magnetic Permeability: Category ‘A’
• Compass: Safe Distance 100 cm
• Complies with: IEC 61162-1; IEC 60945; IEC 62288; ISO 20673; IMO Res. A694 (17); IMO Res. A1021 (26); IMO Res. MSC191 (79)
• Type Approval: Pending
